RED Ultra-Brite Touch 7.0" LCD

4 items left

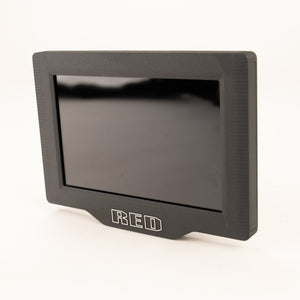

RED Ultra-Brite Touch 7.0" LCD

ACC3046

Condition: 8 "Good"

4 items left

Descripton
Included:
- RED 7" Ultra Bright LCD (Non Direct) DSMC2 Digital Cinema

--
About RED Digital Cinema LCD Monitor
The DSMC2 Touch 7.0" Ultra-Brite LCD offers a high-definition viewing experience for recording and viewing footage on your DSMC2 camera system, even in direct sunlight. A 1920 x 1200 resolution display panel provides 2200 nits of brightness to overcome viewing difficulties in bright outdoor environments. Featuring a wide color gamut display, the display provides enhanced color accuracy. The high pixel density (at 323 ppi) and 1200:1 contrast ratio also helps to deliver exceptional image quality.


RED Digital Cinema LCD Monitor Specifications
-Material: Aluminum Alloy
-Resolution: 1920 x 1200
-Pixel Density: 323 pixels per inch (ppi)
-Refresh Rate: 60Hz
-Response Time: 30ms (black to white)
-Contrast: 1200:1
-Brightness: 2200 cd/m2
-Color Depth: 8-bit RGB, 4:4:4 progressive scan (16.7 million colors)
-Colors: 83% NTSC
-Viewing Angle: +/- 85 deg. all axes
-Display Orientation: Landscape, 180 deg. rotation
-Touch: Projected Capacitive (PCAP), multi-touch
-Brain Connection: Power and Communication via LCD/EVF cable
-Mounting: 23x 1/4-20 mounting points, 2x 3/8-16 mounting points
-Hood Mounting: M3x0.5 x 5mm (max depth)
-Buttons: Up, Down, User 1, User 2
-Power Consumption: 6.1W at full 2200 nits brightness
-Operating Temperature: 0 to 40 deg. C (32 to 104 deg. F)
-Storage Temperature: -20 to 50 deg. C (-4 to 122 deg. F)
-Operating Humidity: 0% to 85%, non-condensing
-Storage Humidity: 0% to 85%, non-condensing
-Firmware Requirement: Compatible with DSMC2 firmware v7.2.0 or later
-Dimensions (HxWxD): 5.70 x 7.70 x 1.40" (14.48 x 19.56 x 3.56cm)
-Weight: 1.45 lbs (0.66kg)
Shipping details

All items are shipped via UPS without shipping insurance unless the client specifically requests it. We recommend that clients purchase their own production insurance that covers their items in shipment.

Included:
- RED 7" Ultra Bright LCD (Non Direct) DSMC2 Digital Cinema

--
About RED Digital Cinema LCD Monitor
The DSMC2 Touch 7.0" Ultra-Brite LCD offers a high-definition viewing experience for recording and viewing footage on your DSMC2 camera system, even in direct sunlight. A 1920 x 1200 resolution display panel provides 2200 nits of brightness to overcome viewing difficulties in bright outdoor environments. Featuring a wide color gamut display, the display provides enhanced color accuracy. The high pixel density (at 323 ppi) and 1200:1 contrast ratio also helps to deliver exceptional image quality.


RED Digital Cinema LCD Monitor Specifications
-Material: Aluminum Alloy
-Resolution: 1920 x 1200
-Pixel Density: 323 pixels per inch (ppi)
-Refresh Rate: 60Hz
-Response Time: 30ms (black to white)
-Contrast: 1200:1
-Brightness: 2200 cd/m2
-Color Depth: 8-bit RGB, 4:4:4 progressive scan (16.7 million colors)
-Colors: 83% NTSC
-Viewing Angle: +/- 85 deg. all axes
-Display Orientation: Landscape, 180 deg. rotation
-Touch: Projected Capacitive (PCAP), multi-touch
-Brain Connection: Power and Communication via LCD/EVF cable
-Mounting: 23x 1/4-20 mounting points, 2x 3/8-16 mounting points
-Hood Mounting: M3x0.5 x 5mm (max depth)
-Buttons: Up, Down, User 1, User 2
-Power Consumption: 6.1W at full 2200 nits brightness
-Operating Temperature: 0 to 40 deg. C (32 to 104 deg. F)
-Storage Temperature: -20 to 50 deg. C (-4 to 122 deg. F)
-Operating Humidity: 0% to 85%, non-condensing
-Storage Humidity: 0% to 85%, non-condensing
-Firmware Requirement: Compatible with DSMC2 firmware v7.2.0 or later
-Dimensions (HxWxD): 5.70 x 7.70 x 1.40" (14.48 x 19.56 x 3.56cm)
-Weight: 1.45 lbs (0.66kg)

All items are shipped via UPS without shipping insurance unless the client specifically requests it. We recommend that clients purchase their own production insurance that covers their items in shipment.

CONDITION SPECIFICATIONS

Here is a guide to understanding our condition ratings:

Condition 10: "Like New" means the Item looks brand new (i.e., no cosmetic wear and tear), all casings, sensor, glass, buttons and screen(s) are pristine condition with no scuffs, marks or scratches. The Item is in excellent working order with no marks or damage to glass or sensor.

Condition 9: "Excellent" means the Item looks close to new (i.e., only the lightest signs of cosmetic wear), all casings, sensor, glass, buttons and screen(s) are excellent condition with no significant scuffs, marks or scratches. The Item is in excellent working order with no marks or damage to glass or sensor.

Condition 8: "Good" means the Item has good overall condition, may have some signs of cosmetic wear (i.e., light scuffing to some areas / slight shiny surfaces). Any casings, sensor, glass, buttons and screen(s) are good condition and there are no significant chips / scratches or damage. The Item is in excellent working order with no marks / damage to glass or sensor.

Condition 7: "Well Used" means the Item may have significant signs of cosmetic wear (i.e., scuffing to some areas / shiny surfaces / marks). All casings, sensor, glass, buttons and screen(s) are full working condition. There are no marks or damage to the glass or sensor unless specifically stated.

Condition 6: "Heavily Used" means the Item may have significant signs of cosmetic wear (i.e., scuffing / shiny surfaces / marks / scratches / chipping to paint / peeling surfaces). The Item is in full working order with no marks or damage to glass or sensor unless specifically stated.
